Project Description

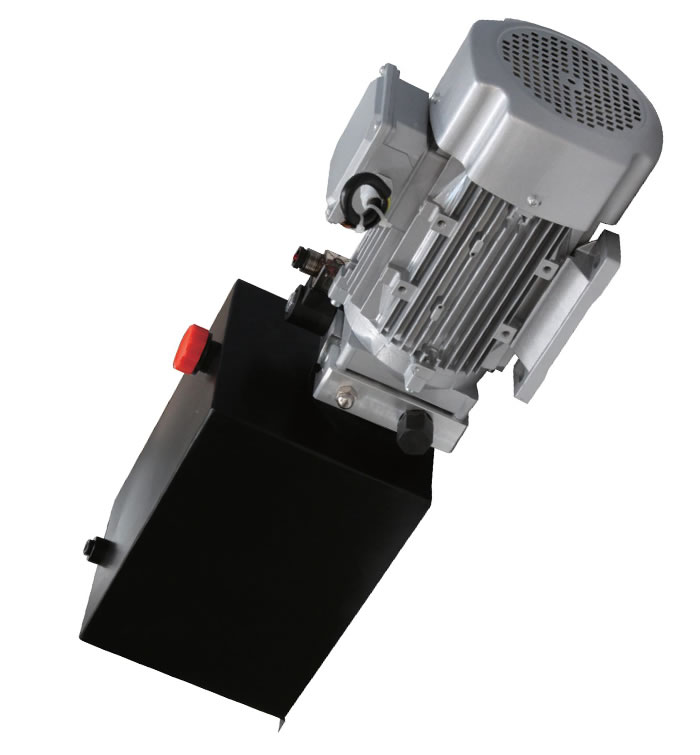

Power Units for Small Scissor Lift
- Reservoir Capacity: Steel 0.52Gal
- Motor: 110V AC 550W
- Flow: 0.45 to 0.68GPM
- Valve: 12/24VDC 110VAC Solenoid
- System Pressure: 2030 to 3190PSI
- Oil Port: G1/4 or M14 x1.5 A/B
- Manufacturer Warranty: 1 year Limited Warranty
Description
This power unit is widely used in Boom Lift. It is equipped with a 110V AC 550W motor and a 12/24VDC 110VAC Solenoid valve. There are a steel oil reservoir with the capacity of 0.52 gal and a G1/4 or M14 x1.5 A/B oil port. The system pressure is 2030 to 3190 PSI and it flows 0.45 to 0.68 gal oil per minute.
This power unit features typically power up, gravity down with machine weight function. The lowering movement is controlled by the solenoid valve while the lower speed is controlled by nonadjustable throttle valve. The high precision flow divider/combiner valve enables the synchronization of the 2 cylinders of the lift.
Cartridge solenoid valve with manual override function is available on request.
AC motors with CSA or UL certification are available upon request.

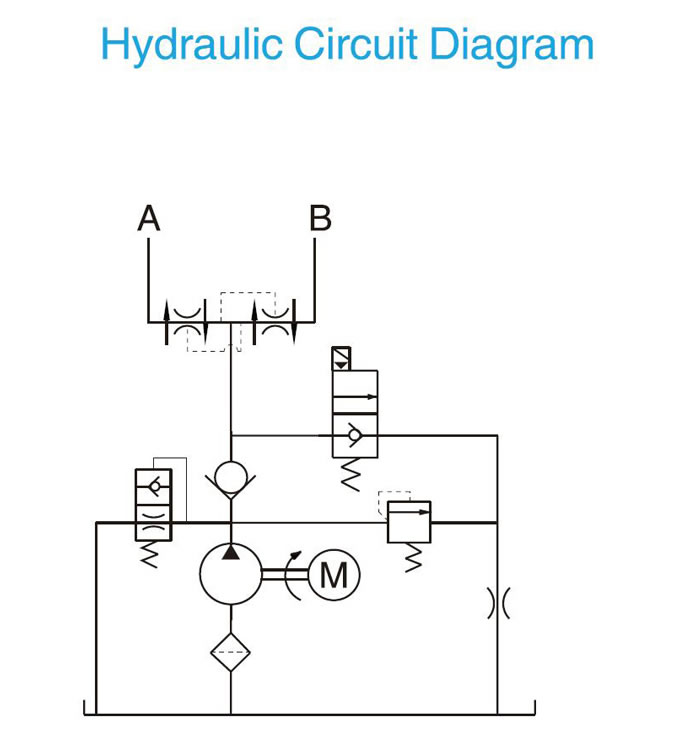

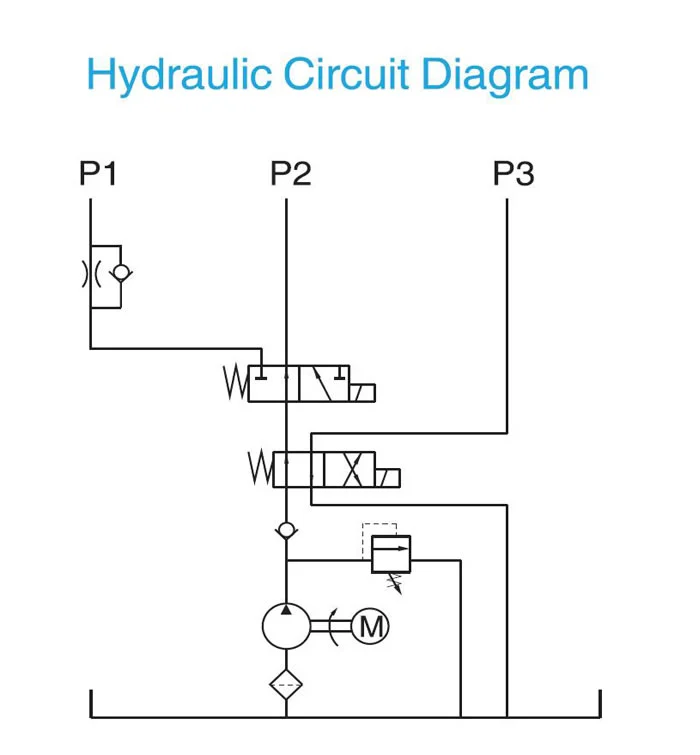

Drawing
Precautions
- Due to various types of hydraulic system failure occur more than 80% of the problems are caused by hydraulic oil, so the correct use of hydraulic oil to ensure the system’s reliability is very important.The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.The hydraulic oil should be filtered by a 10-30um filter before put into use.N46 hydraulic oil is recommended.
- Clean all the hydraulic parts concerned before mounting mini hydraulic power pack.Check the oil level in the tank after the initial running of small hydraulic power unit.
- Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.We are at your disposal to offer you the power unites with your favorite power,flow,pressure as well as the tank capacity.
- The electric hydraulic pump should be vertical installation.
- The electric hydraulic pump is of S3 duty,which can only work intermittently and repeatedly, i.e., 1 minute on and 9 minutes off.
- To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of mini hydraulic power pack is 1:9.
| Model | Volt engine | Motor Power | Rated Speed | Displacement | System Pressure | Tank Capacity | Solenoid Valve Volt |
|---|---|---|---|---|---|---|---|
| HPP 195F0.322A1101110H | 110VAC | 550W | 3450RPM | 0.32mL/r | 22MPa | 2L | 110VAC |
| HPP 195F0.752A110124H | 0.75mL/r | 14MPa | 24 volt DC | ||||
| HPP 195F0.62A110124H | 0.6mL/r | 16.5MPa | |||||
| HPP-195F0.62A220124H | 220 volt AC | 2850 / 3450RPM | |||||
| Hpp-195F0.62A240124H | 240VAC | 2850RPM | |||||
| HPP 195F0.382D120212H | 12 volt DC | 800W | 3450RPM | 0.36mL/r | 18MPa | 12 volt DC |
