Project Description

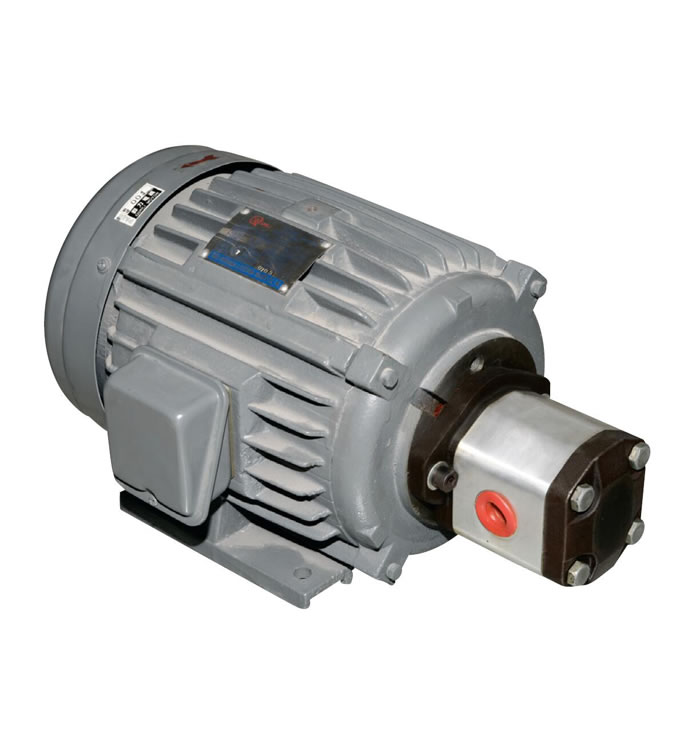

AC Pump Motor
- Flow: 4~15cc/r Gear
- Valve: no valve
- System Pressure: 8~20Mpa
- Manufacturer Warranty: 1 year Limited Warranty
Description
The AC pump motor refers to an AC Motor driving a Hydraulic gear pump assembly. The system pressure is 8-20 Mpa. The flow of the pump ranges from 4 cc to 15cc/rev, and can be widely used in large equipments.
AC Motors are either 220V 1 phase or 380V 3 phase. The motors are the IP55 standard and the aluminum body motor power is 1.5kW,cast iron motor power is 3.7kW.
An aluminum bell-housing encloses an elastic coupling ensuring a mechanical drive with low noise transmission.

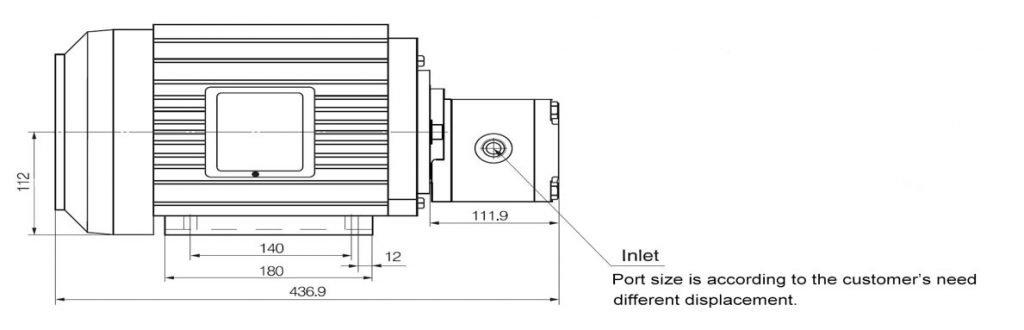

Drawing
Precautions
- The power unit is of S3 duty, which can only be worked intermittently, ie., 1minute on and 9 minutes off.
- Clean all the hydraulic parts concerned before mounting the power unit.
- Viscosity of the oil shoud be 15~68 cst,and the oil should be clean and free of impurities,N46 hydraulic oil is recommended.
- The pump station should be mounted horizontally.

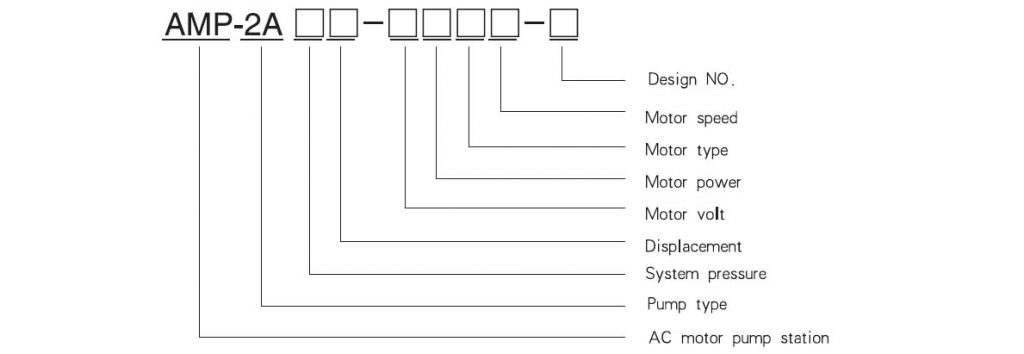

| Model | Volt engine | motor Power | Rated Speed | Displacement | System Pressure |
|---|---|---|---|---|---|
| AMP-E4A3803H | 380 volt AC | 1.5KW | 1400RPM | 4mL/r | 14MPa |
| AMP-F7A3806H | 3.7kW | 7mL/r | 20MPa | ||
| AMP-D11A3805H | 3KW | 11mL/r | 10MPa | ||
| AMP-C14A3805H | 3KW | 14mL/r | 8MPa | ||
| AMP-D15A3806H | 3.7kW | 15mL/r | 9MPa |
