Project Description

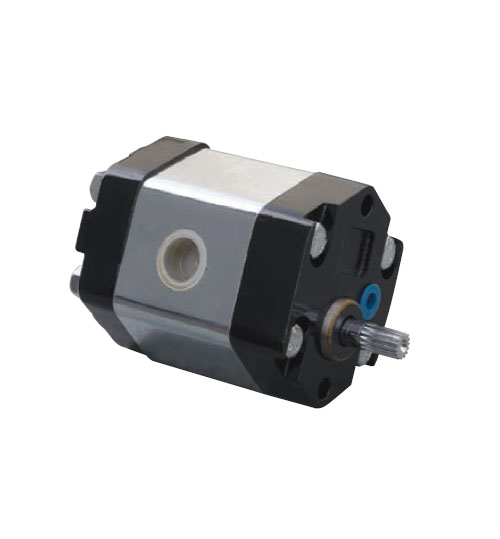

CBYA Gear Pump
| Item#: | Gear Pumps |
| Place of Origin: | Zhejiang, China (Mainland) |
| Quality Certificate: | ISO9000, ISO/TS16949 |
| Delivery Time: | 7-15 working day |
| Guarantee Period: | 1 Years |
General Description
The CBYA series gear pump consists of a gear pair supported by two aluminum bearing blocks, a housing,a front cover and a rear cover.The CBYA Series Gear Pump features high mechanical and volumetric efficiency, low noise level as well aslow weigh/power ratio.It is widely used in the DC power units for jumping car and lifting machines.

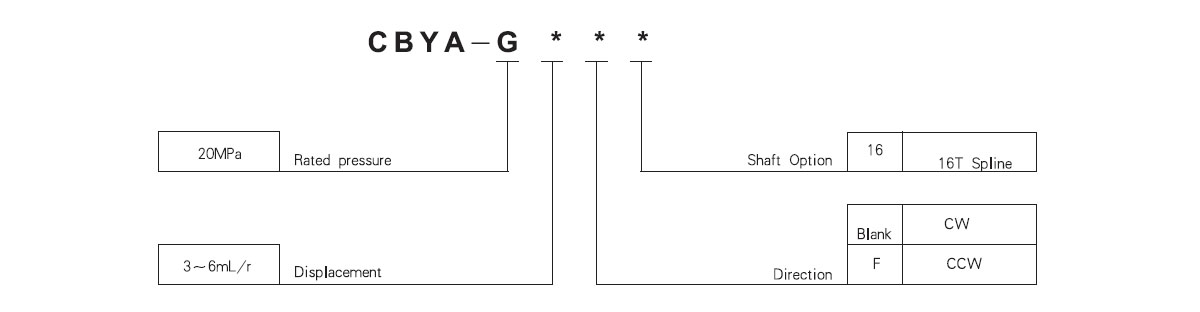

Order Code

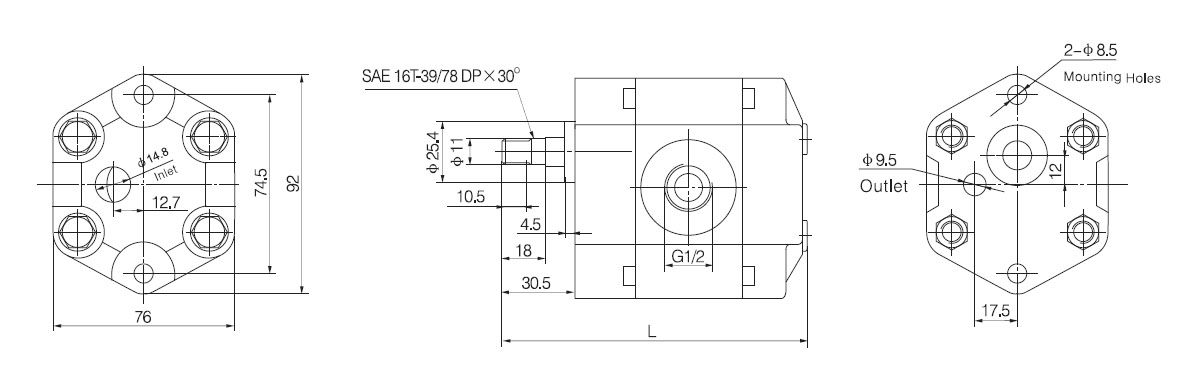

Outline Dimension
Technical data
| Model | Displacement | pressure(MPa) | Speed(RPM) | L(mm) | Efficiency | |||
|---|---|---|---|---|---|---|---|---|
| mL/r (in3/r) | P1 | P2 | P3 | Rated | Max | |||
| CBYA-G3 * * | 3.57 (0.218) | 20 | 25 | 31.5 | 2000 | 4000 | 132 | 90% |
| CBYA-G5 * * | 4.64 (0.283) | 135 | ||||||
| CBYA-G6 * * | 5.71 (0.348) | 138 | ||||||
