Project Description

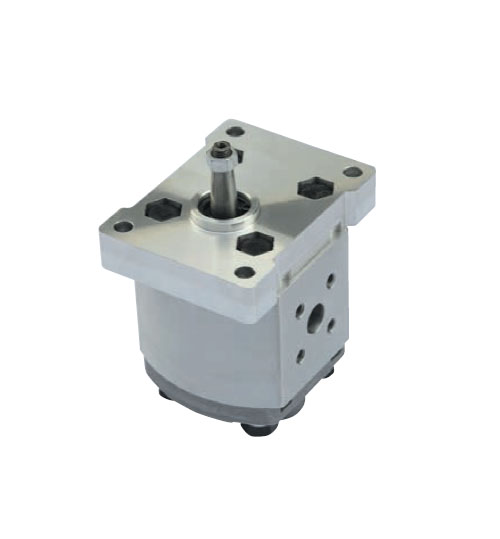

CBKE Gear Pumps
| Item#: | Gear Pumps |
| Place of Origin: | Zhejiang, China (Mainland) |
| Quality Certificate: | ISO9000, ISO/TS16949 |
| Delivery Time: | 7-15 working day |
| Guarantee Period: | 1 Years |
General Description
The CBKE series gear pump consists of a gear pair supported by two aluminum bearing blocks,a housing,front cover and rear cover.The axial clearance can be automatically compensated by the bearing blocks.The CBKE pump features simple structure,high efficiency of mechanism and volume,low noise level as well as high reliability.It is widely used in the small hydraulic system ,textile machinery and agriculture machinery,etc.

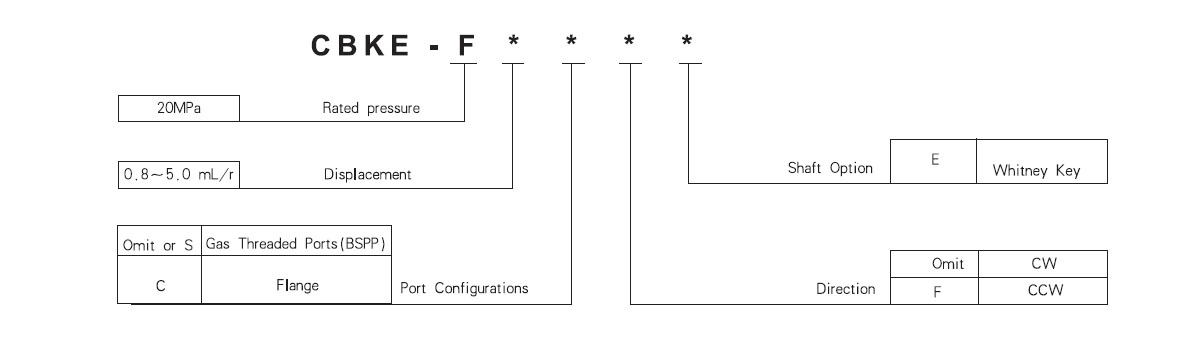

Order Code

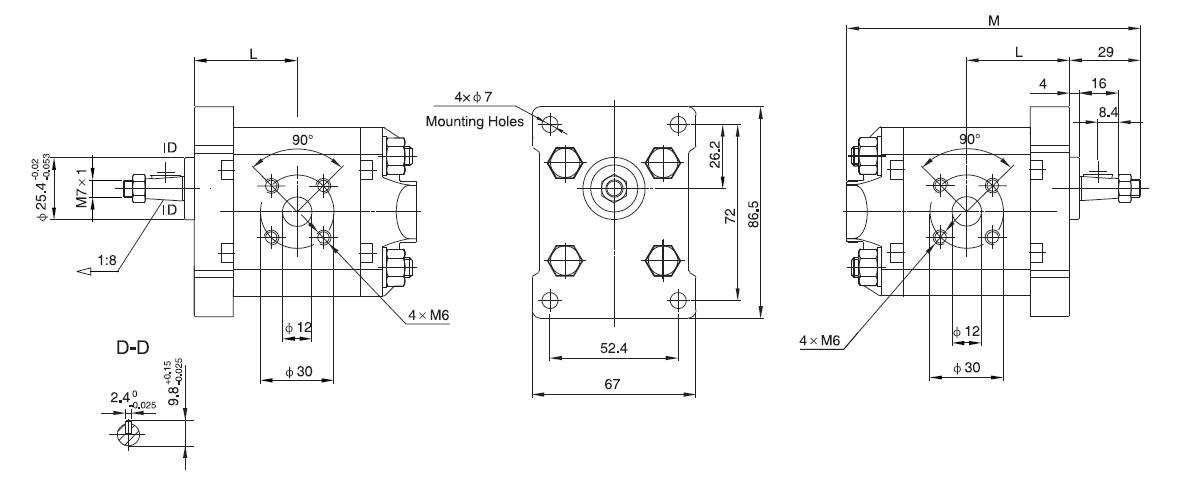

Outline Dimension
Technical data
| Model | Displacement | Pressure(MPa) | Speed(RPM) | Dimension | (inlet & outlet) | Efficiency | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| mL/r(in³/r) | P1 | P2 | P3 | Rated | Max | L(mm) | M(mm) | |||
| CBKE-F0.8*** | 0.89 (0.054) | 20 | 25 | 28 | 2000 | 4000 | 36.25 | 103.5 | G1/4 | 85% |
| CBKE-F1.2*** | 1.27 (0.078) | 37 | 105 | 86% | ||||||
| CBKE-F1.6*** | 1.66 (0.101) | 37.75 | 106.5 | G3/8 | ||||||
| CBKE-F2.0*** | 2.05 (0.125) | 38 | 108 | 88% | ||||||
| CBKE-F2.5*** | 2.56 (0.156) | 39 | 110 | |||||||
| CBKE-F3.2*** | 3.32 (0.203) | 40.5 | 113 | G1/2 | 89% | |||||
| CBKE-F4.2*** | 4.3 (0.263) | 18 | 23 | 26 | 2000 | 3600 | 42.5 | 117 | 90% | |
| CBKE-F5.0*** | 5.1 (0.311) | 14 | 18 | 23 | 1500 | 3000 | 44 | 120 | ||
