Project Description

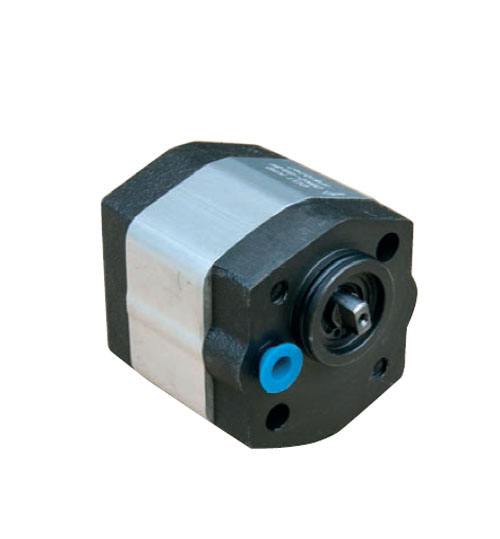

CBKC Gear Pumps
| Item#: | Gear Pumps |
| Place of Origin: | Zhejiang, China (Mainland) |
| Quality Certificate: | ISO9000, ISO/TS16949 |
| Delivery Time: | 7-15 working day |
| Guarantee Period: | 1 Years |
General Description
The CBKC gear pump consists of a gear pair supported by two aluminum bearing blocks,a housing,front cover and rear cover.The axial clearance can be automatically compensated by the bearing blocks.The CBKC pump features are high mechanical and volumetric efficiency ,low noise level as well as low weigh/power ratio

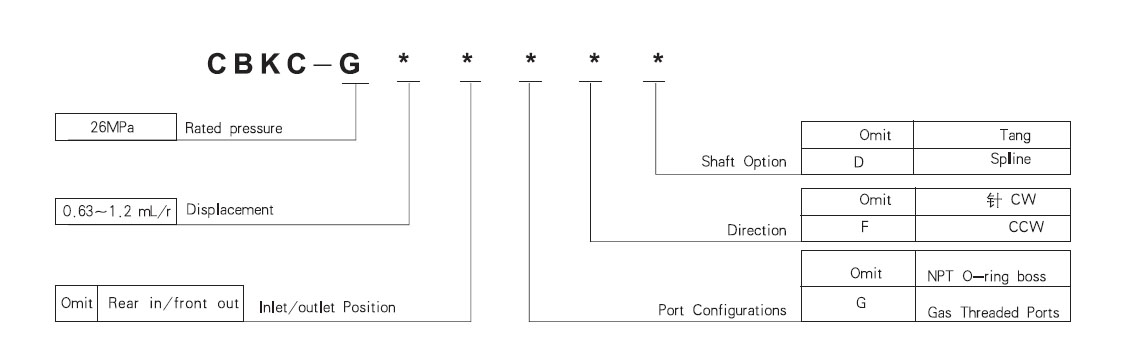

Order Code

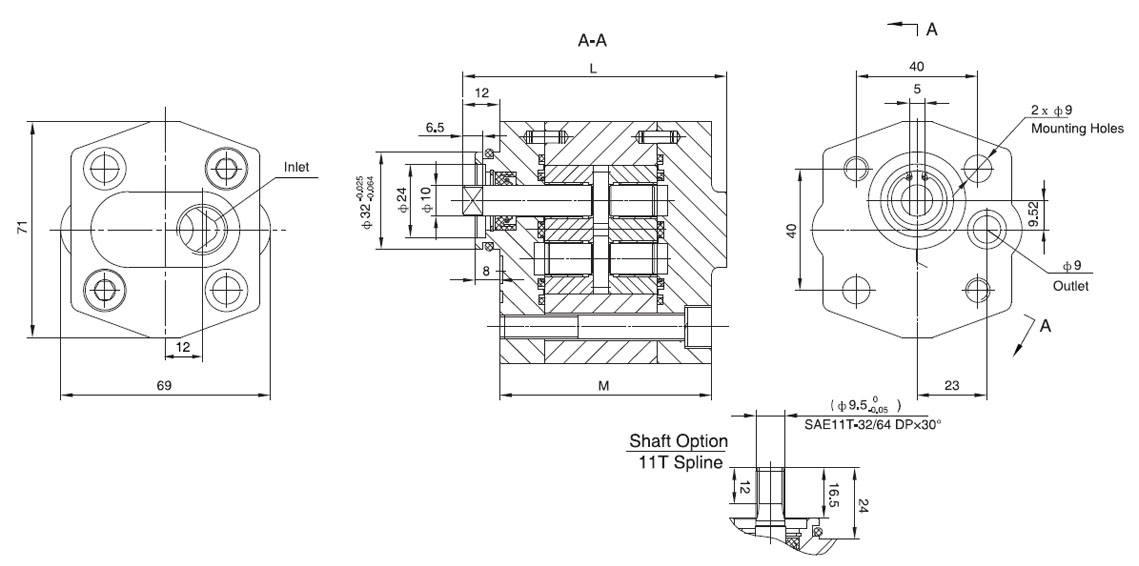

Outline Dimension
Technical data
| Model | Displacement | Pressure(MPa) | Speed(RPM) | Dimension(mm) | Efficiency | ||||
|---|---|---|---|---|---|---|---|---|---|
| ml/r(in³/r) | P1 | P2 | P3 | Rated | Max | L(mm) | M(mm) | ||
| CBKC-G0.63**** | 0.66(0.0402) | 26 | 29 | 32 | 2000 | 4000 | 72.5 | 67.5 | 85% |
| CBKC-G0.8**** | 0.87(0.0531) | 73.3 | 68.3 | ||||||
| CBKC-G1.2**** | 1.27(0.0769) | 74.8 | 69.8 | ||||||
