Project Description

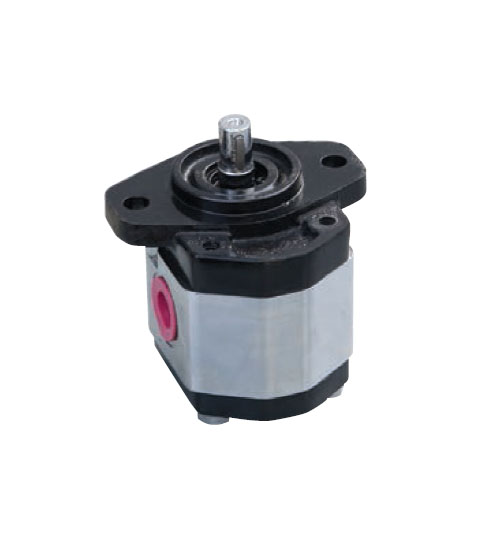

CB1A Gear Pumps
| Item#: | Gear Pumps |
| Place of Origin: | Zhejiang, China (Mainland) |
| Quality Certificate: | ISO9000, ISO/TS16949 |
| Delivery Time: | 7-15 working day |
| Guarantee Period: | 1 Years |
General Description
The CB1A gear pump consists of a gear pair supported by two aluminum bearing blocks, a housing, front cover and rear cover.The axial clearance can be automatically compensated by the bearing blocks. The features of CB1A pump are simple structure, high mechanical and volumetric efficiency, low noise level as well as high reliability. It is widely used in the hydraulic system of truck, lift and deliver machinery,mine machinery, and agriculture machinery, etc.

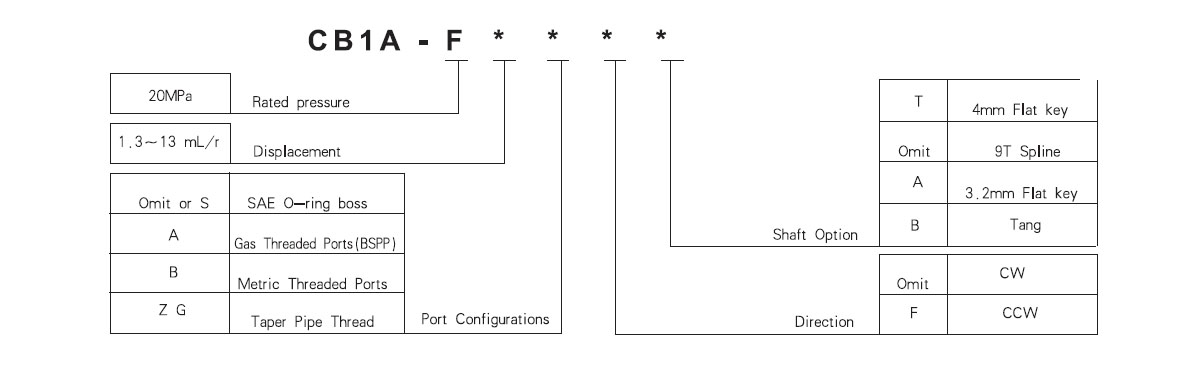

Order Code

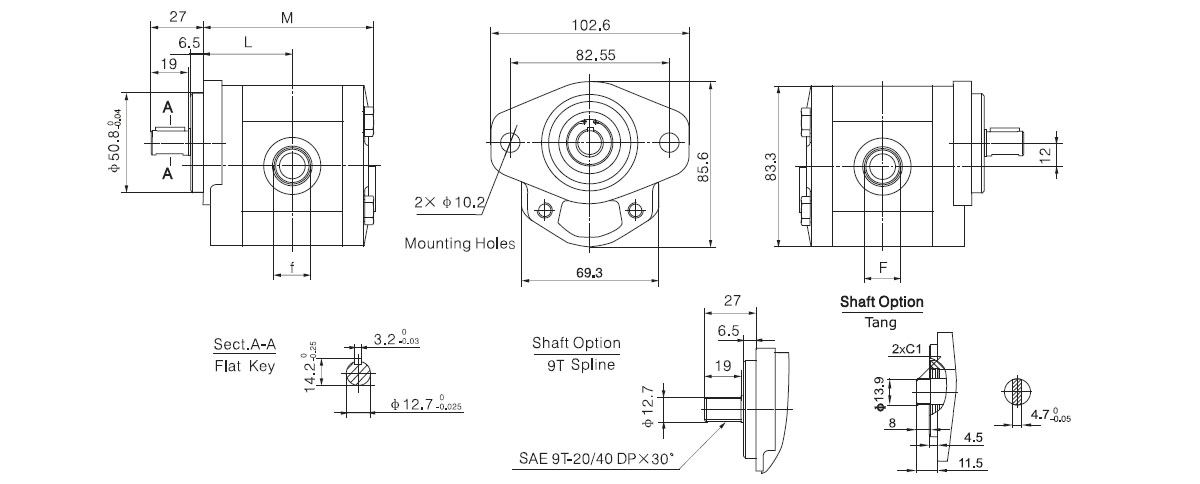

Outline Dimension
Technical data
| Model | Displacement | pressure(MPa) | Speed(RPM) | Dimension | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mL/r (in3/r) | PI | P2 | P3 | Rated | Max | L(mm) | M(mm) | F | f | |
| Inlet | Outlet | |||||||||
| CB1A-F1.3* | 1.36 (0.0830) | 20 | 25 | 28 | 2000 | 4000 | 42 | 80.3 | SAE 口 | SAE 口 |
| 3/4-16UN | 9/16-18UN | |||||||||
| CB1A-F2* | 2.05 (0.1251) | 43 | 82.3 | |||||||
| CB1A-F2.7* | 2.74 (0.1672) | 44 | 84.3 | BSPP 口 | BSPP 口 | |||||
| CB1A-F3.2* | 3.42 (0.2087) | 45 | 86.3 | Gl/2" | G3/8" | |||||
| CB1A-F4* | 4.10 (0.2502) | 46 | 88.3 | |||||||
| CB1A-F5* | 5.13 (0.3131) | 47.5 | 91.3 | Metric port | Metric port | |||||
| CB1A-F6* | 6.16 (0.3759) | 49 | 94.3 | M18X1.5 | M14X1.5 | |||||
| CB1A-F7.5* | 7.52 (0.4589) | 18 | 20 | 22 | 3500 | 51 | 98.3 | 7/8-14UN | 3/4-16UN | |
| CB1A-F9* | 9.23 (0.5633) | 3000 | 53.5 | 103.3 | G3/4" | G1/2" | ||||
| CB1A-F10* | 10.95 (0.6682) | 15 | 18 | 20 | 2500 | 56 | 108.3 | M22X1.5 | M18X1.5 | |
| CB1A-F13* | 13.68 (0.8348) | 2000 | 60 | 116.3 | ||||||
