Project Description

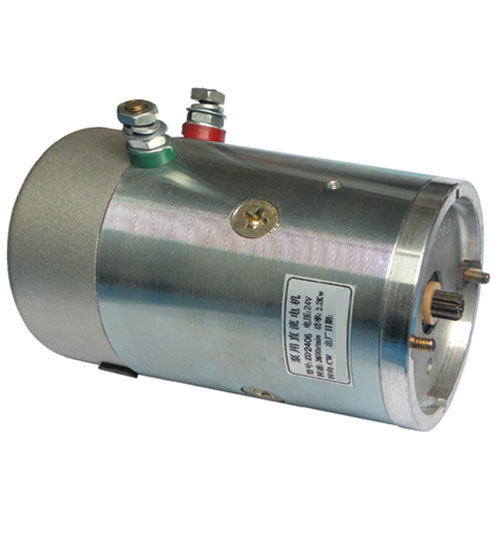

24v Small Electric Motor ZD2406

Item#:ZD2406
Place of Origin:Zhejiang, China (Mainland)
Quality Certificate:ISO9000, ISO/TS16949
Delivery Time:7-15 working day
Guarantee Period:1 Years

24v DC Motor Specification

Moter TypeZD2406
Moter Volt24V
Power rating2.2KW
Motor Speed2600r/min
Motor rotationCCW
Protection GradeIP44
Motor Weight7.5Kg

24V DC Motor commutator:

ModulusM1.25
TeethZ9
Pressure Anglea37.5
Sub roundd11.25
Top roundDa12.4
Root rounddf9.5
Sub-normal lengthwk5.68
Cross TeethK2

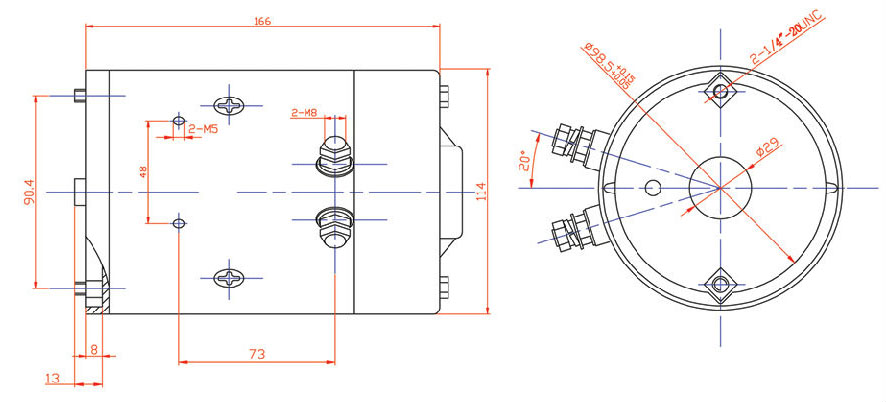

Motor 24v Drawing

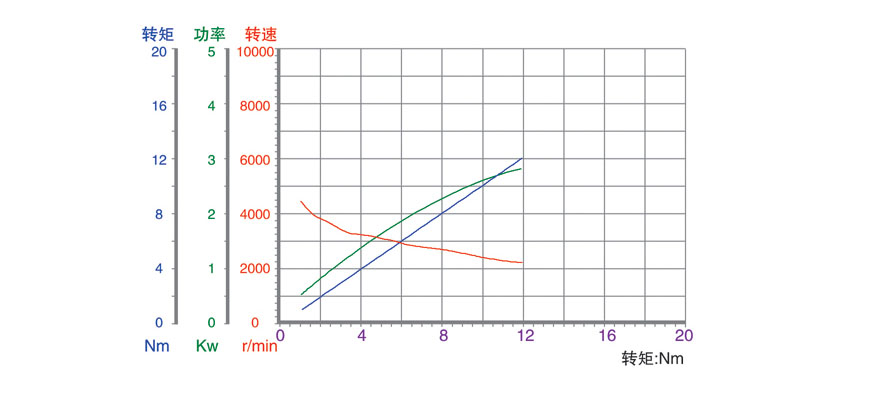

24v Hgh Torque DC Motors Speed-Torque Characteristic diagram
