Project Description

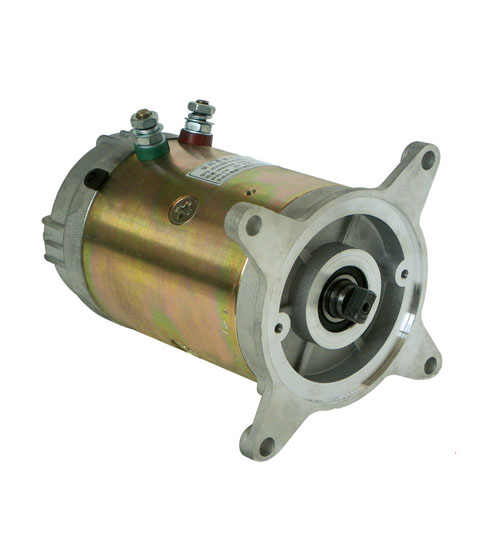

24v Electric Motor ZD2407-1

Item#: ZD2407-1
Place of Origin: Zhejiang, China (Mainland)
Quality Certificate: ISO9000, ISO/TS16949
Delivery Time: 7-15 working day
Guarantee Period: 1 Years
Request a Free Quote

24v DC Motor Specification

Moter Type ZD2407-1
Moter Volt 24V
Power rating 2.2KW
Motor Speed 2600r/min
Motor rotation CCW
Protection Grade IP44
Motor Weight 7.5Kg

24 Volt DC Motor commutator:

Modulus M 1.25
Teeth Z 9
Pressure Angle a 37.5
Sub round d 11.25
Top round Da 12.4
Root round df 9.5
Sub-normal length wk 5.68
Cross Teeth K 2

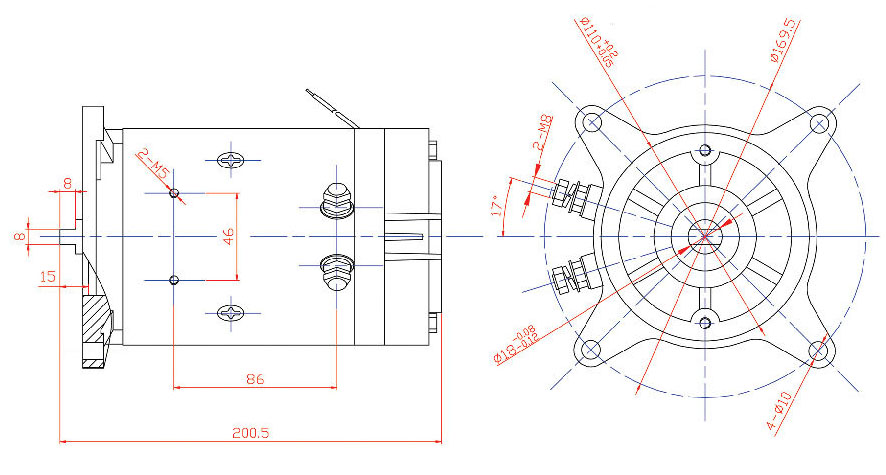

Small DC Electric Motors Drawing

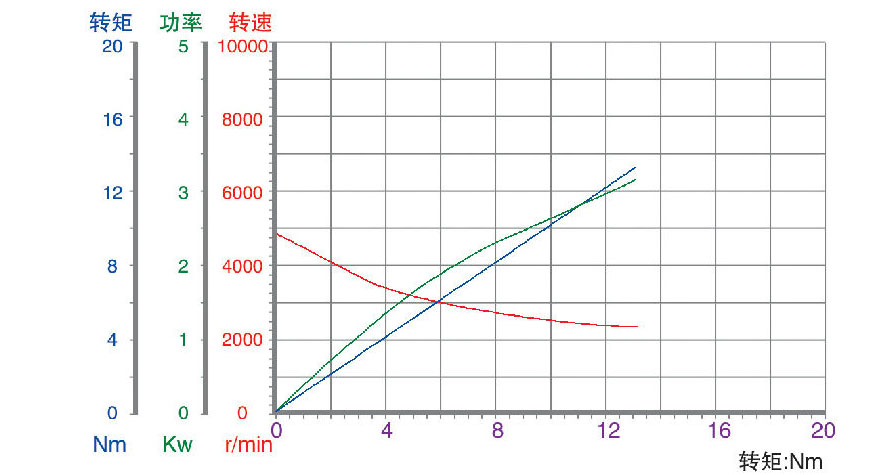

24v DC Motor Speed-Torque Characteristic diagram
