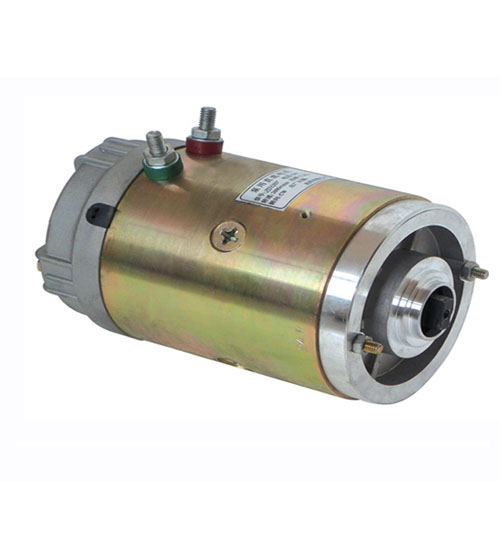

12V Motor DC ZD1207

Item#: ZD1207
Place of Origin: Zhejiang, China (Mainland)
Quality Certificate: ISO9000, ISO/TS16949
Delivery Time: 7-15 working day
Guarantee Period: 1 Years
Request a Free Quote

12v DC Motor Specification

Moter Type ZD1207
Moter Volt 12V
Power rating 1.6KW
Motor Speed 2500r/min
Motor rotation CCW
Protection Grade IP44
Motor Weight 7.5Kg

12 Volt DC Motor commutator:

Modulus M 1.25
Teeth Z 9
Pressure Angle a 37.5
Sub round d 11.25
Top round Da 12.4
Root round df 9.5
Sub-normal length wk 5.68
Cross Teeth K 2

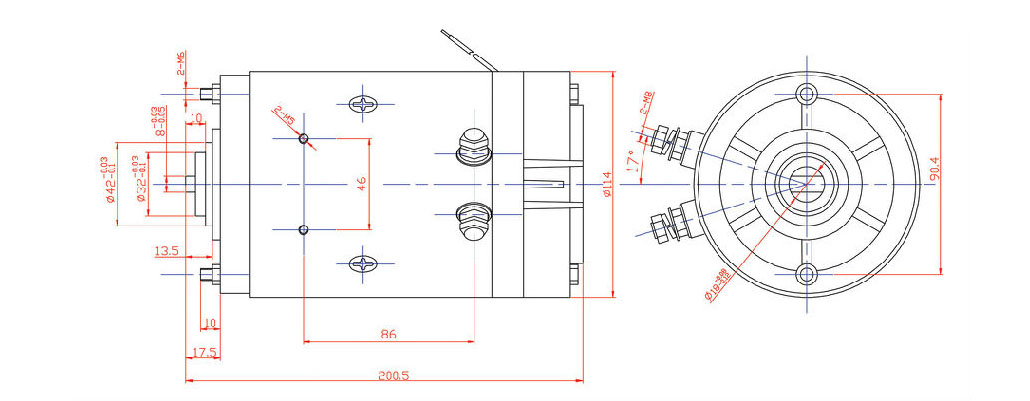

Motor 12v Drawing

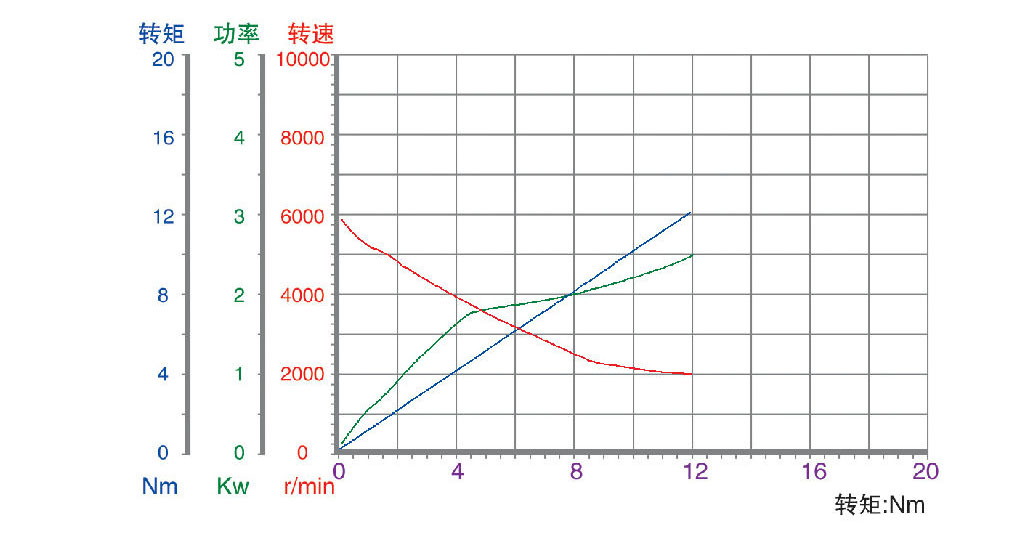

12v Electric Motors Speed-Torque Characteristic diagram
