Power Units For Electric Scissor Lift

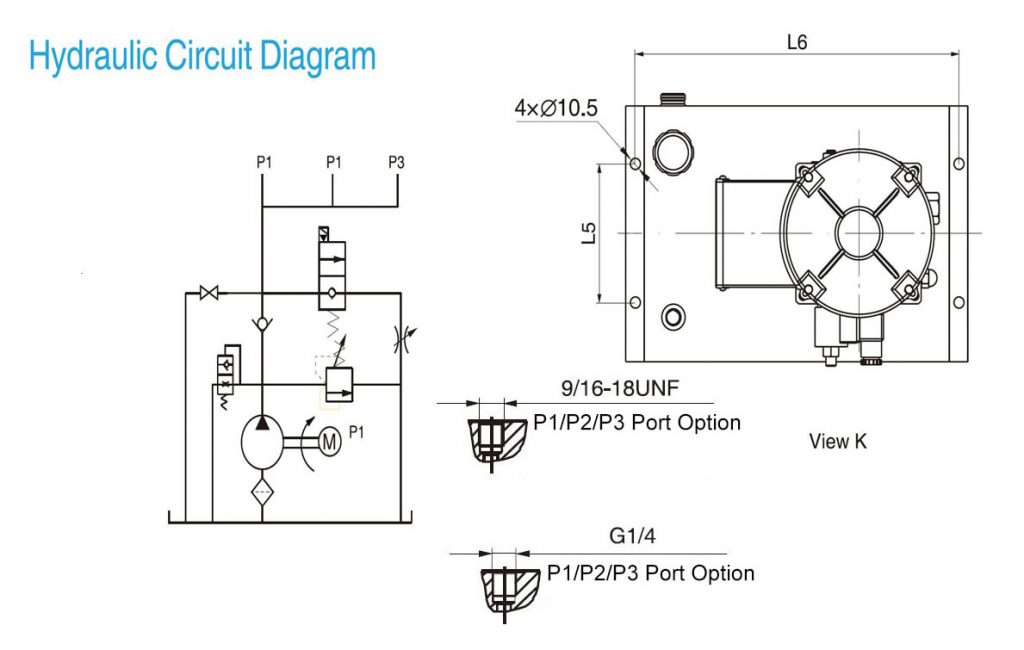

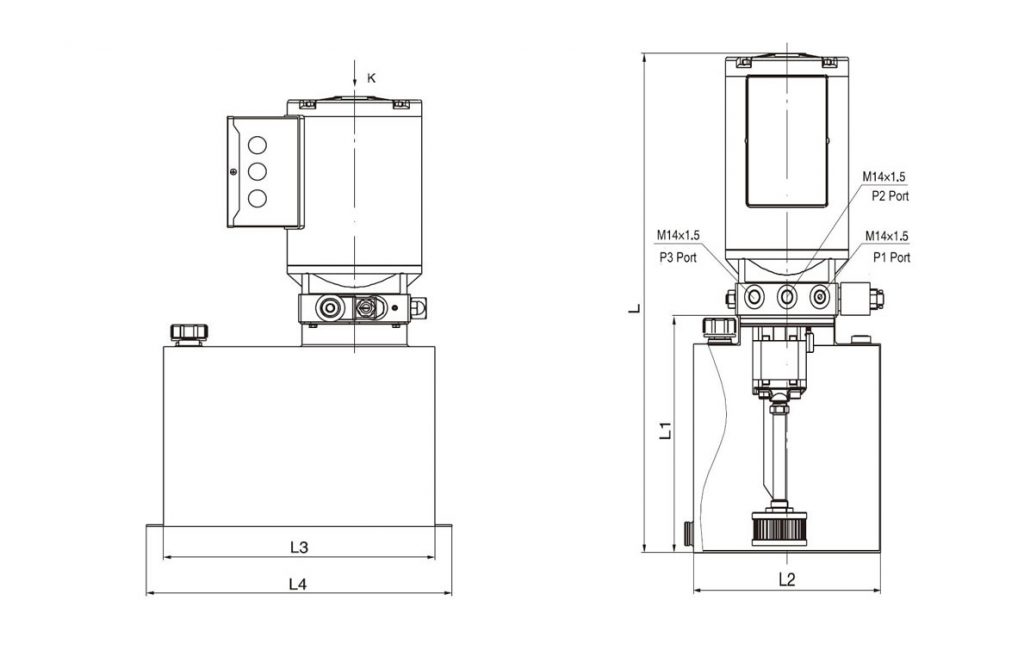

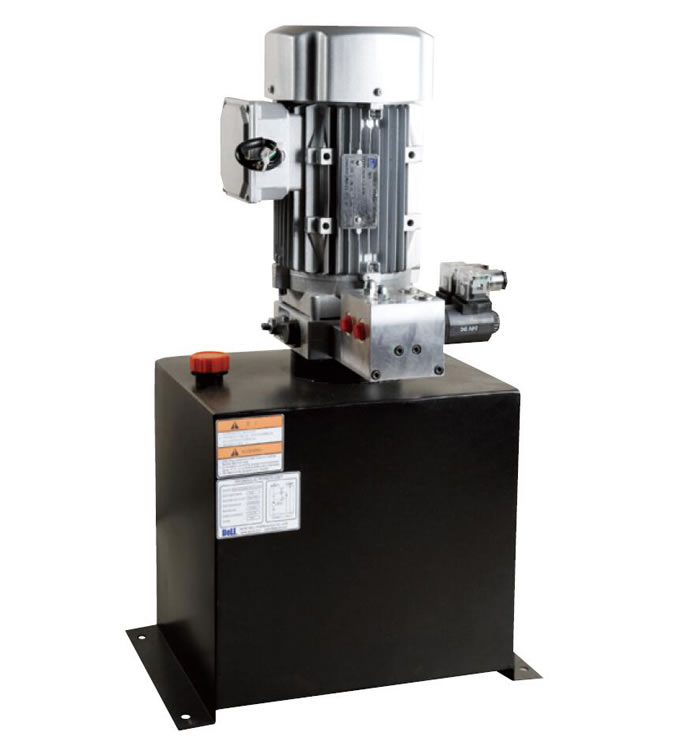

This power unit is widely used in Electric Scissor Lift. It is equipped with a 380V AC 2.2KW motor and the cartridge valve. There are a steel oil reservoir with the capacity of 3.96 to 6.6 gal and a G1/4 or M14 x1.5 P1/P2/P3 oil port. The system pressure is 3335 to 3625 PSI and it flows 1.58 to 2.03 gal oil per minute.

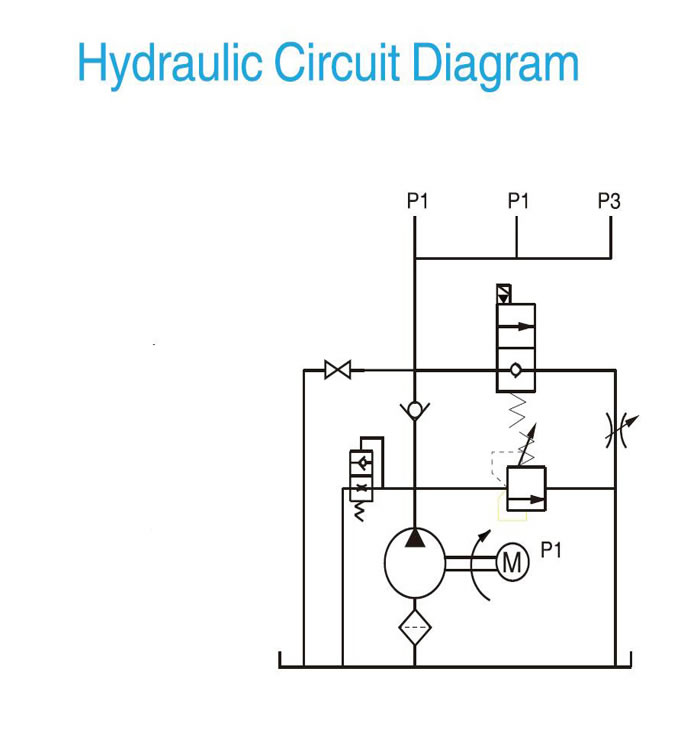

This power unit features typically power up, gravity down with machine weight function. The lowering movement is controlled by the solenoid valve while the lower speed is controlled by nonadjustable throttle valve.

Cartridge solenoid valve with manual override function is available on request.

AC motors with CSA or UL certification are available upon request.

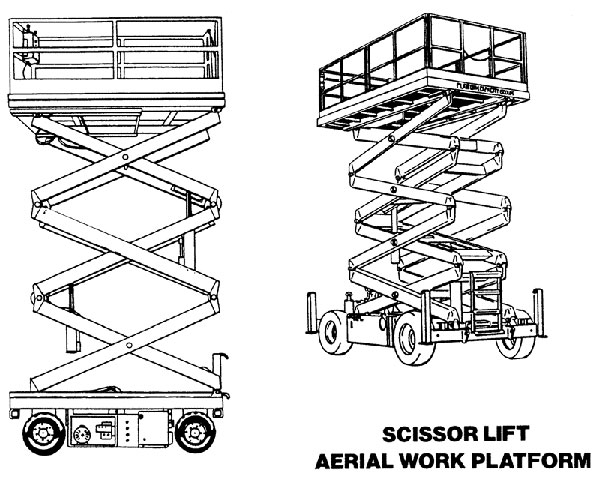

Hydraulic Pump / Power Packs are essential mechanical parts for hydraulic scissor lift. Such lift are maneuverability with vehicles, can be controlled by electric, and normally play a role as aerial work platform to carry materials or people for aerial maintenance work.

Usually, the voltage of the battery pack is DC12V, DC24V, DC48V, and DC96V. In the case of identical current, larger the voltage of power source is, the higher power the scissors lift power unit can create, i.e. heavier load can be lifted to a higher position by the boom lift.

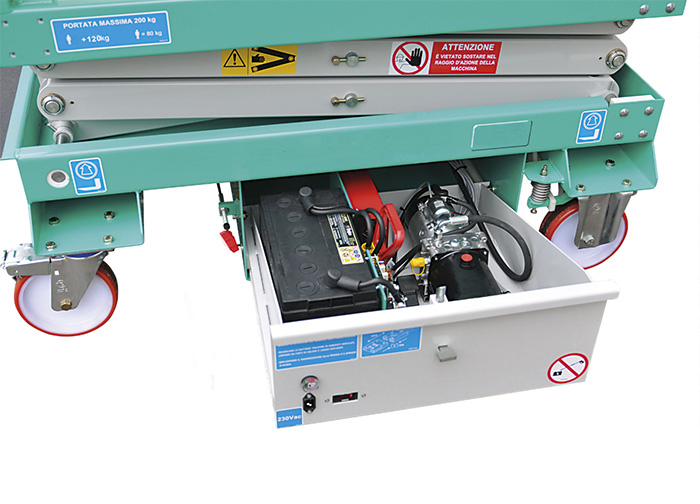

To control the movement of these hydraulic lifts, we use micro/mini hydraulic power packs. Power scissors lift power packs system require a powerful hydro power pack and battery pack to provide a continuous source of power for their mobile operations.

Hydraulic cylinder is also vital for hydraulic scissor lift table, which should be well matched with lift power unit. Commonly one, two, or three single-acting hydraulic cylinders are used for industrial scissors lifts.

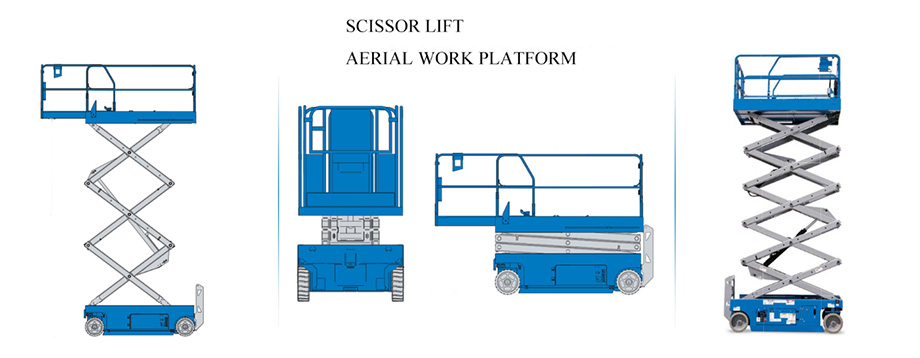

hydraulic scissor lift-hydraulic pump motor

And the single acting hydraulic power unit drives the single-acting hydraulic cylinders for “Power Up, Gravity Down” function, therefore, by pressing a button, the scissor platform automatically lifts the weight up. Besides, the stroke of the boom lift cylinder determines the lifting height.

Compare with “Monarch hydraulics” power pack , Our electric hydraulic power unit advantage :

Cost of small power unit more reasonable.
Fast Delivery
Low Noise
More Customized

This power unit is widely used in Electric Scissor Lift. It is equipped with a 380V AC 2.2KW motor and the cartridge valve. There are a steel oil reservoir with the capacity of 3.96 to 6.6 gal and a G1/4 or M14 x1.5 P1/P2/P3 oil port. The system pressure is 3335 to 3625 PSI and it flows 1.58 to 2.03 gal oil per minute.

This power unit features typically power up, gravity down with machine weight function. The lowering movement is controlled by the solenoid valve while the lower speed is controlled by nonadjustable throttle valve.

Cartridge solenoid valve with manual override function is available on request.

AC motors with CSA or UL certification are available upon request.
