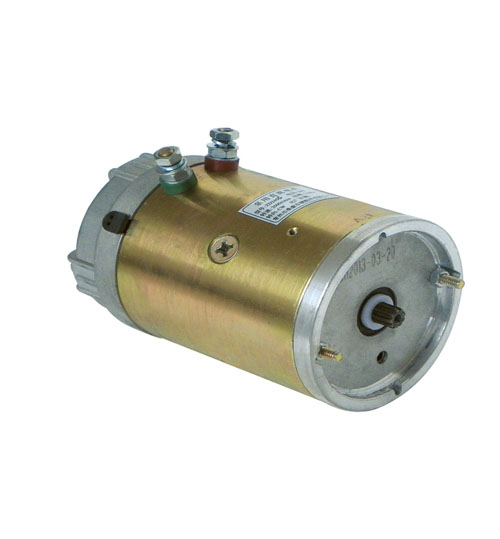

24v Motor ZD2405

Item#: ZD2405
Place of Origin: Zhejiang, China (Mainland)
Quality Certificate: ISO9000, ISO/TS16949
Delivery Time: 7-15 working day
Guarantee Period: 1 Years

24v DC Motor Specification

Motor Type ZD2405
Motor Volt 24V
Power rating 2.2KW
Motor Speed 2600r/min
Motor rotation CCW
Protection Grade IP44
Motor Weight 7.5Kg

24V DC Motor commutator:

Modulus M 1.25
Teeth Z 9
Pressure Angle a 37.5
Sub round d 11.25
Top round Da 12.4
Root round df 9.5
Sub-normal length wk 5.68
Cross Teeth K 2

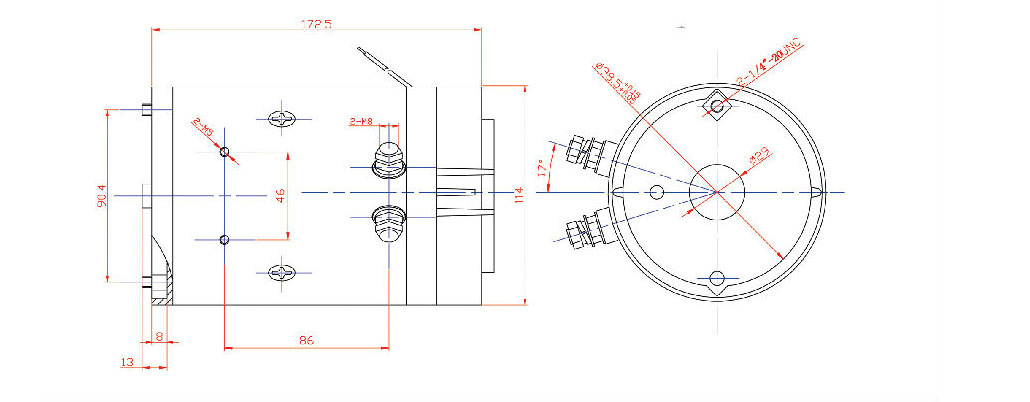

Motor 24V Drawing

24V DC Motor ZD2405 Drawing

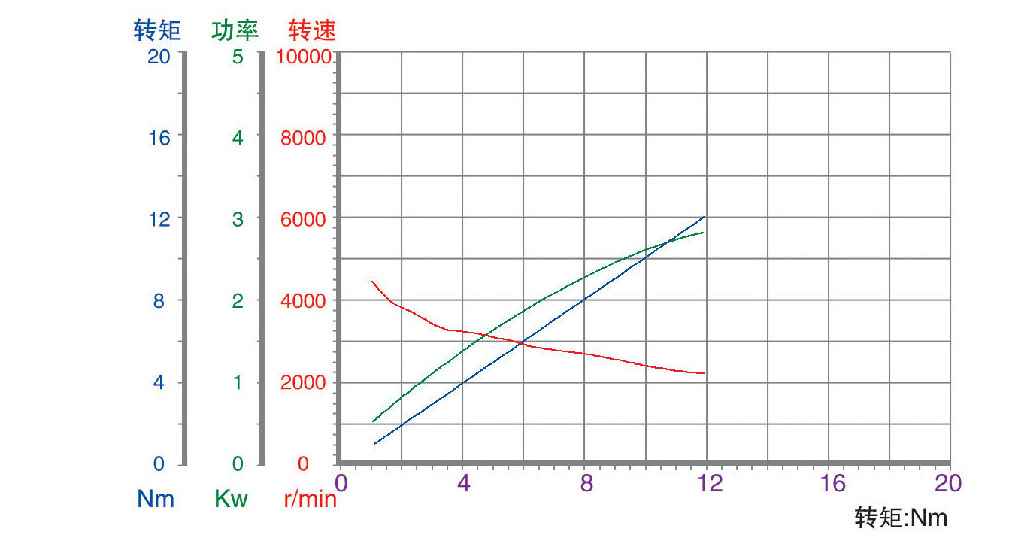

24v High RPM DC Motor Speed

24V DC Motor ZD2405 Speed Diagram
